A G+4 residence on an individual plot at AA Block, Street No. 68, New Town. 4 BHK homes, possession December 2026.

Plot 111
G+4
Super built-up 1,800 sq. ft.
From ₹1.6 Cr

Under constructionBooking openPremiumPlot Plot 111

AA Block, Plot 111, Street No. 68, New Town, Kolkata 700 156, West Bengal

Configuration: 4 BHK
Super built-up: 1,800 sq. ft.
Starting at: ₹1.6 Cr
Building price: ₹7 Cr
Possession: December 2026
Structure: G+4
Corridor: New Town

From the architect's drawing

What has actuallybeen drawn

G+4 residence at Premises No. 02-068. Areas, bays and services below are read straight off the architect's sheets — the sheets themselves are linked below.

Plot: Premises No. 02-068, Street No. 0068, New Town, Kolkata
Plot size: 10.245 m × 19.532 m — 33′-7″ × 64′-1″
Ground coverage: 128.375 sq. m. — 1,382 sq. ft.
Storeys: Ground floor + four residential floors
Homes: One four-bedroom home per floor, 1st to 4th
Vertical core: Lift well 1300 × 1600 mm, off a common lobby
Scale: 1 : 100
Drawing no.: 02-0068

Drawn into every flat

Four bedrooms, the largest 13′-2″ × 9′-10″
Living-cum-dining, 14′-1″ × 15′-10″
Kitchen, 11′-6″ × 6′-10″
Three toilets
Loft off the inner lobby
Balcony, 10′-6″ × 3′-2″

On the ground floor

Four car parking bays, drawn in off the street frontage
Shop of 8′-5″ × 24′-11″ beside the parking
Electrical equipment room at ground level
Two further bedrooms and a toilet on the ground floor
Underground water reservoir and planted rear yard

4 car parking bays at ground level

The sheets print no tenement schedule, so no unit areas are quoted here — the 1,800 sq. ft. above is the client's figure, not the drawing's. Three plot references are in circulation for this address: the drawing's title block says Premises No. 02-068, the society paperwork says Plot 111, and the architect's renders are captioned AA-110. All three are printed as received rather than reconciled.

The drawings themselves

The sheets,as they were drawn

The architect's drawings, reproduced whole and uncropped. Open any sheet to read it at full size, at the scale the architect drew it to.

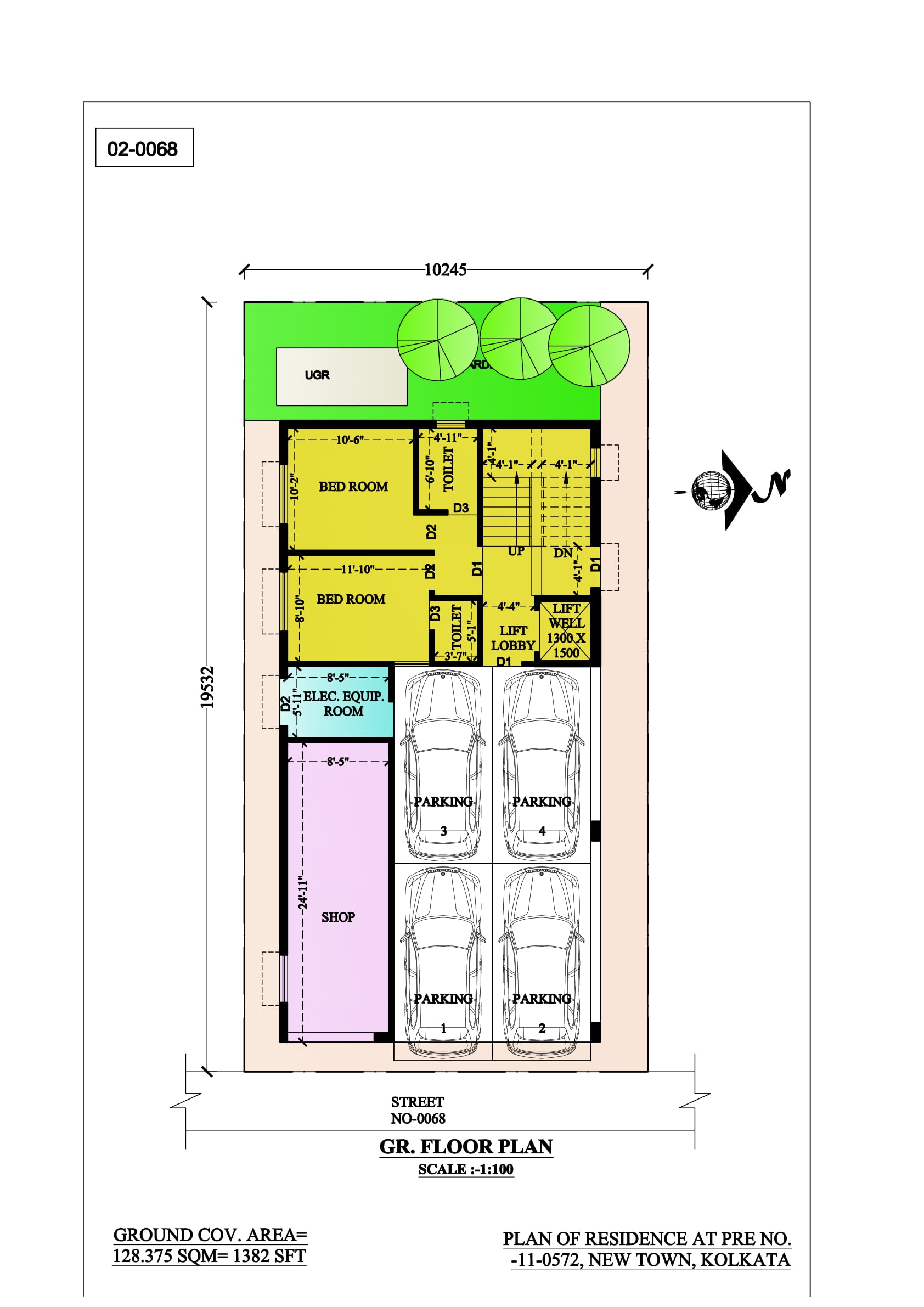

Ground floor plan in colour: four car bays drawn with cars along the Street No. 68 frontage, a long shop and electrical equipment room to one side, two bedrooms with toilets behind the stair and lift lobby, and an underground water reservoir under planting across the rear yard. — PDFGround floor plan — colour render

The same ground floor plan in line work, without colour: four parking bays off the street, shop and electrical equipment room alongside, two bedrooms and toilets behind the stair and lift lobby, and the underground water reservoir across the rear yard. Dimensions are written against every room. — PDFGround floor plan — line drawing

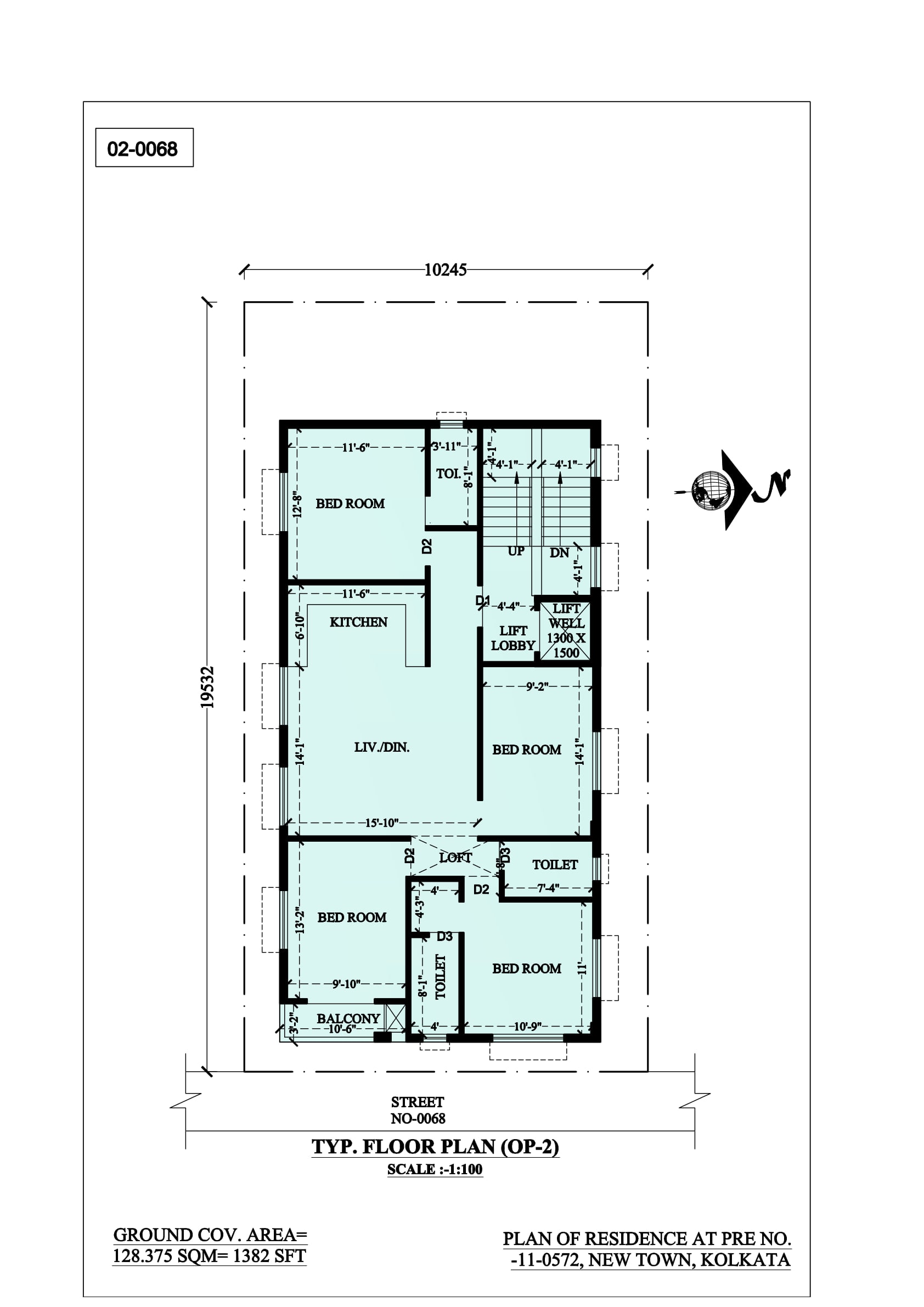

Typical floor plan in colour, one home to the floor: four bedrooms at the corners, a living-cum-dining room running the depth of the plan with the kitchen off it, three toilets, a loft over the inner lobby and a balcony at the street end. — PDF1st to 4th floor plan — colour render

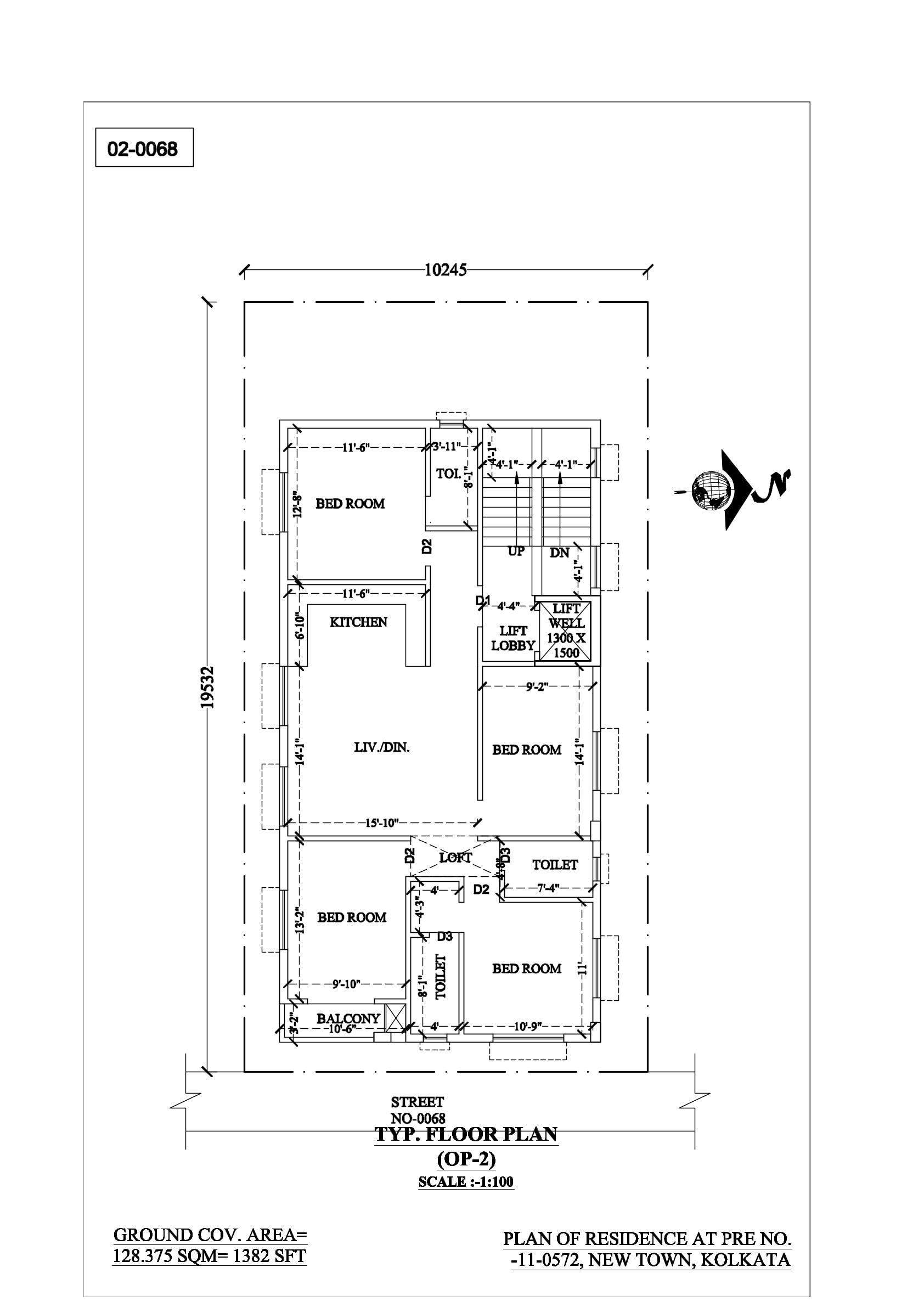

The same typical floor plan in line work, marked OP-2 on the sheet: four bedrooms, living-cum-dining with the kitchen off it, three toilets, a loft and a balcony, with dimensions written against every room. — PDF1st to 4th floor plan — line drawing

Drawings are reproduced as issued and are not to scale on screen. Dimensions written on the sheet govern; anything measured off the picture does not.

At this address

What comeswith the flat

200 sq. ft. commercial space at ₹20,000 per sq. ft.
CCTV surveillance & 24/7 security
24-hour power backup
Dedicated parking — one space per flat
Landscaped garden / green space
Security room

How far, from the gate

Biswa Bangla Gate500 m
Axis Mall500 m
City Centre 21 km
